Cassette blinds and cassette blackout blinds professionally fitted

73mm wide cassette

95mm wide cassette

120mm wide cassette

Recess Fix Side channel

Face Fix Side channel

ZIP Side channel

C60

C90

C120

BLIND TYPE C2

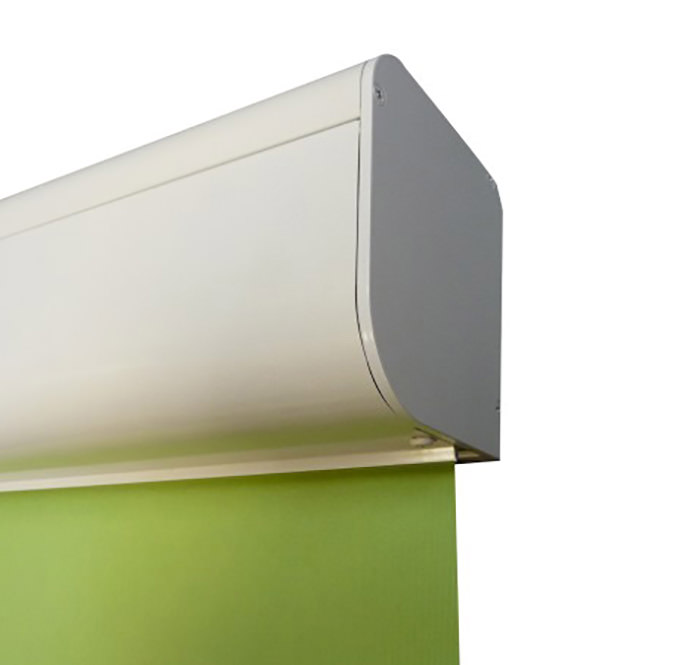

This cassetted braked spring roller blind with premium quality spring and decelerator ensures smooth and quiet operation. Direct fix for top and face applications. The fabric is locked into a groove in the 32mm aluminium barrel, and features aluminium Tear Drop bottom bar. Black or white hardware as standard.

Spring
operation

BLIND TYPE C3

MANUAL CRANK OPERATED CASSETTED BLINDS

The crank control cassetted blind features a compact, robust 1:3 gear mechanism operated by a detachable crank handle. The cassette is designed for top or face fixing and accommodates 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. The fabric is locked into a groove in the barrel. It has an aluminium Tear Drop bottom bar and black or white hardware as standard.

Crank
operation

BLIND TYPE C4

LOW VOLTAGE ELECTRIC CASSETTED BLINDS

This electric cassetted blind features a low voltage motor as standard. The cassette is designed for top or face fixing andaccommodates 40mm grooved aluminium barrel, housing the 24v DC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel. It has an aluminium Tear Drop bottom bar and black or white hardware as standard.

Motorised, 24v
mains powered

BLIND TYPE C5

ELECTRIC MOTORISED CASSETTED BLINDS

This electric cassetted blind features a motor as standard. The cassette is designed for top or face fixing and accommodates 40mm grooved aluminium barrel, housing the 230v AC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at edge of fabric to retain it within side channels. Also, there is an aluminium Tear Drop bottom bar and black or white hardware as standard.

Motorised, 230v
mains powered

BLIND TYPE C6

7.4v DC BATTERY OPERATED MOTORISED CASSETTED BLINDS

This electric cassetted blind with side channels features a 7.4v DC battery powered tubular motor. The cassette is designed for top or face fixing which accommodates a 40mm grooved aluminium barrel, housing the motor. The motor makes operation easy thanks to its remote control, with a quiet and soft start/stop motion and electronic stops. The fabric is locked into a groove in the barrel and an aluminium bottom bar. Black or white hardware as standard.

Motorised, 7.4v DC battery powered

BLIND TYPE S1

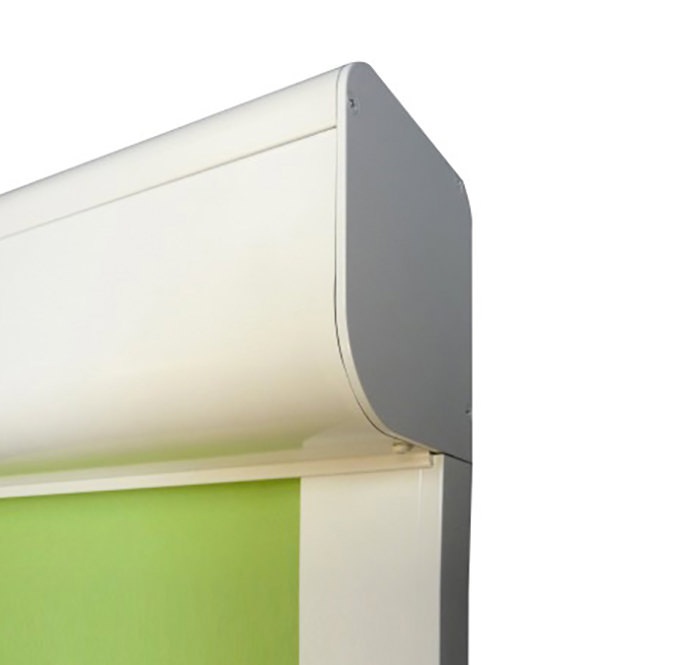

All of the sidewinder cassetted blinds come with an enclosed aluminium head-box and side channels as standard. The cassette is designed for top or face fixing and accommodates a 32mm grooved aluminium barrel. Fabric is locked into groove in barrel, and features aluminium bottom bar with pile seal. A robust sidewinder mechanism provides the effective means of operation with the use of metal control chain, held in place by a chain tidy. Studs fitted at the edge of the fabric retain it within side channels. Black or white hardware as standard.

Chain
operation

BLIND TYPE S2

The cassetted braked spring roller blind comes with a premium quality spring and decelerator to ensure smooth and quiet operation. Direct fix for top and face applications. The fabric is locked into a groove in the 32mm aluminium barrel, and by pips in the side channels. It also features an aluminium bottom bar. Black or white hardware as standard.

Spring
operation

BLIND TYPE S3

MANUAL CRANK OPERATED CASSETTED BLINDS with sidechannels

The crank control cassetted blind features a compact, robust 1:3 gear mechanism operated by a detachable crank handle. The cassette is designed for top or face fixing and accommodates a 45, mm grooved aluminium barrel. The fabric is locked into a groove in the barrel with studs fitted at the edges of fabric to retain it within the side channels. Aluminium bottom bar. Black or white hardware as standard.

Crank
operation

BLIND TYPE S4

LOW VOLTAGE ELECTRIC CASSETTED BLINDS with sidechannels

The electric cassetted blind with side channels features a low voltage motor as standard. Cassette is designed for top or face fixing and accommodates a 40mm grooved aluminium barrel, housing the 24v DC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium Tear Drop bottom bar. Black or white hardware as standard.

Motorised, 24v
mains powered

BLIND TYPE S5

ELECTRIC MOTORISED CASSETTED BLINDS with sidechannels

The electric cassetted blind with side channels features a motor as standard. The cassette is designed for top or face fixing and accommodates a 40mm grooved aluminium barrel, housing the 230 v AC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium Tear Drop bottom bar. Black or white hardware as standard.

Motorised, 230v
mains powered

BLIND TYPE S6

7.4v DC BATTERY OPERATED MOTORISED CASSETTED BLINDS with sidechannels

This electric cassetted blind with side channels features a 7.4v DC battery powered tubular motor. The cassette is designed for top or face fixing which accommodates a 40mm grooved aluminium barrel, housing the motor. The motor makes operation easy thanks to its remote control, with a quiet and soft start/stop motion and electronic stops. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium bottom bar. Black or white hardware as standard. This one will need to be charged with either a charger or a solar powered panel.

Motorised, 7.4v DC battery powered

BLIND TYPE T1

All of the sidewinder cassetted blinds come with an enclosed aluminium head-box and side channels as standard. The cassette is designed for top or face fixing and accommodates 53/70mm grooved aluminium barrels, depending on blind size and fabric weight. Fabric is locked into groove in barrel, and features aluminium bottom bar with pile seal. A robust sidewinder mechanism provides the effective means of operation with the use of metal control chain, held in place by a chain tidy. Studs fitted at the edge of the fabric retain it within side channels. Black or white hardware as standard.

Chain
operation

BLIND TYPE T2

ZIP MANUAL CRANK OPERATED CASSETTED BLINDS with sidechannels

The crank control cassetted blind features a compact, robust 1:3 gear mechanism operated by a detachable crank handle. The cassette is designed for top or face fixing and accommodates 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. The fabric is locked into a groove in the barrel with studs fitted at the edges of fabric to retain it within the side channels. Aluminium bottom bar. Black or white hardware as standard.

Crank
operation

BLIND TYPE T3

ZIP LOW VOLTAGE ELECTRIC CASSETTED BLINDS with sidechannels

The electric cassetted blind with side channels features a low voltage motor as standard. Cassette is designed for top or face fixing and accommodates a 40mm grooved aluminium barrel, housing the 24v DC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium Tear Drop bottom bar. Black or white hardware as standard.

Motorised, 24v
mains powered

BLIND TYPE T4

ZIP ELECTRIC MOTORISED CASSETTED BLINDS with sidechannels

The electric cassetted blind with side channels features a motor as standard. The cassette is designed for top or face fixing and accommodates a 40mm grooved aluminium barrel, housing the 230 v AC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium Tear Drop bottom bar. Black or white hardware as standard.

Motorised, 230v
mains powered
